Wheel loader G2700 HD+
The top model of the G2700 series with a standard lifting arm! The articulated loader has a 50 hp Kubota engine, which complies with the latest emission standards, and 12-ton planetary axles with electrically engageable 100% differential lock on both axles. This drive system gives the G2700 HD+ a pulling force of 28,000 N and a maximum travel speed of 30 km/h.
G2700 HD+ Standard Equipment
- GIANT hydraulic quick change system
- Double acting valve at the front (mechanical)
- Floating position on lifting cylinder(s)
- ROPS/FOPS safety roof incl. safety doors (L+R)
- Luxury air suspended seat with safety belt, armrest and extended backrest
- Hydraulic service brake on 4 wheels
- Working light (halogen) front, on lifting arm
- Battery, 77 Ah
- Main switch
- Anti-theft protection with access code
- Towing hook
- Counterweight integrated into the bumper
- Oil cooler

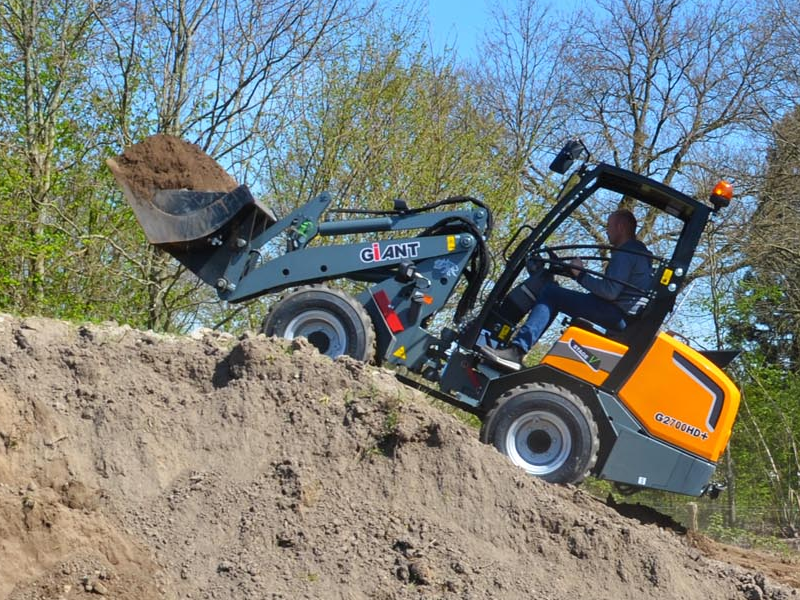

Working in small spaces is no issue with the G2700 HD+ due to the articulated-pivot steering system. This system ensures a small turning radius and provides the mini loader with stability, keeping all four wheels on the ground. This allows for safe operation on uneven terrain and ensures ample pulling force.
Tipping loads of the machine
The table shows the tipping loads at different positions of the machine. The tipping load is the maximum weight the machine can lift while remaining stable and not tipping. The actual tipping load depends on the configuration of the machine, such as various options, attachments and working position.
|
G2700 HD+ Tipping Loads / Devrilme Yükleri
|
|
Position / Konum
|
Load / Yük (kg)
|
|
S
|
2.050 kg
|
|
T
|
1.905 kg
|
|
U
|
1.480 kg
|
|
V
|
1.160 kg
|
|
W
|
3.200 kg
|
|
X
|
2.225 kg
|
|
Y
|
1.590 kg
|
|
Source:
TOBROCO-GIANT product information sheet. Values depend on machine
configuration, attachment and working position.
|
G2700 HD+
Specifications
|
|
Service
weight ¹
|
2600 kg
|
|
Tipping Load
²
|
2225 kg
|
|
Length
without bucket
|
3410 mm
|
|
Width on
standard tires
|
1140 mm
|
|
Travel Speed
|
0-10 / 0-30 km/h
|
|
Cylinders
|
3
|
|
Engine power
|
36 kW
|
|
Oil tank
capacity
|
42 l
|
|
Transmission
|
Automotive control
|
|
Final drive
|
12 tons planetary axles (HD version)
|
|
Driving
hydraulics
|
121 l/min (400 bar)
|
|
Parking
brake
|
Drum brakes
|
|
Lifting
capacity
|
1900 kg
|
|
Lifting
height ²
|
2980 mm
|
|
Machine
height ³
|
2340 mm
|
|
Standard
tires
|
11.5/80-15.3 AS
|
|
Engine
|
Kubota D1803 CR DOC/DPF (STAGE V)
|
|
Engine power
|
50 hp
|
|
Fuel tank
capacity
|
43 l
|
|
Type
|
Hydrostatic 4 wheel drive
|
|
Differential
|
100% electrical differential lock on both axles
|
|
Pulling
force
|
28.000 N
|
|
Working
hydraulics
|
51 l/min (230 bar)
|
|
¹ Measured
with earthbucket
|
|
² Measured
with counterweight and driver ± kg
|
|
³ Measured
on standard tyres with safety roof
|
|
