GIANT G2200E X-TRA-Wheel Loader

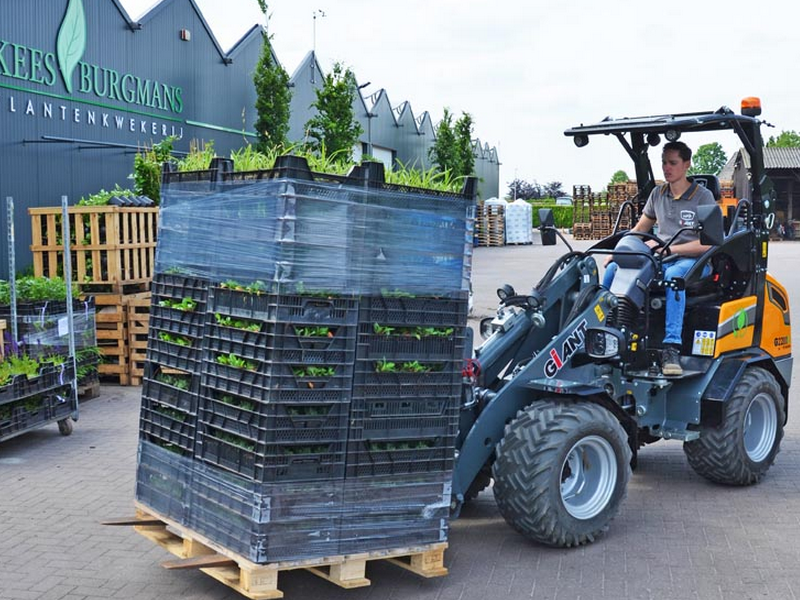

The electric mini-loader, G2200E X-TRA, has a lifting capacity of 2,200 kg, a lifting height of 2.45 meters and was especially developed for heavy work in construction and earthmoving.

The electric wheel loader combines the best of both worlds with the advantages of an articulated loader and silent operation without emissions.

The G2200E X-TRA is therefore ideal for working inside buildings or on construction sites in urban areas.

G2200E X-TRA Standard Equipment

Hydraulic Quick Hitch
Double acting valve at the front (mechanical)
ROPS/FOPS safety roof incl. safety doors (L+R)
Hydraulic service brake on 4 wheels
Luxury seat with safetybelt, armrest and extended backrest
Towing hook at the back
Working light (LED) at the front
Battery management system
Anti-theft protection with access code (not certified)

The G2200E X-TRA is standard equipped with a 260 Ah, 48 V lithium-ion battery that can easily be charged with the "on board" charger (390 Ah or 520 Ah are optional). The individual electric motors, 6.5 kW for the drive and 12 kW for the working hydraulics, always ensure sufficient power for precise work.

Furthermore, the machine regenerates energy when the machine rolls out or drives down hill.

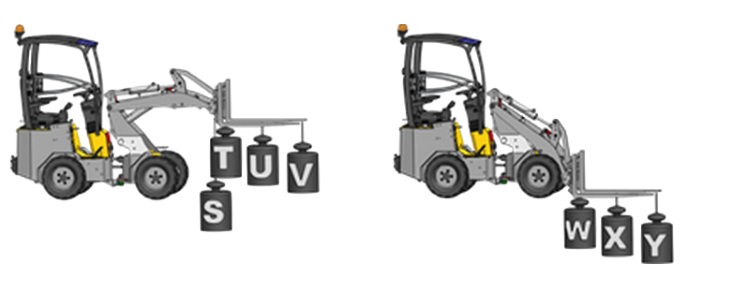

G2200E X-TRA Tipping Loads / Devrilme Yükleri
Position / Konum	Load / Yük (kg)
S	1.935 kg
T	1.775 kg
U	1.330 kg
V	1.010 kg
W	2.495 kg
X	1.725 kg
Y	1.230 kg
Source: TOBROCO-GIANT product information sheet. Values depend on machine configuration, attachment and working position.

G2200E X-TRA Specifications
Service weight ¹	2200 kg
Tipping Load ²	2054 kg
Length without bucket	3054 mm
Width on standard tires	1080 mm
Travel Speed	0-18 km/h
Energy recuperation	Recuperates energy while rolling out or downhill
Differential	Axles with limited slip
Hill-Hold control	Automatic brake prevents rolling back on a slope
Lifting capacity	2200 kg
Lifting height ²	2450 mm
Machine height ³	2300 mm
Standard tires	10.0/75x15.3 AS
Electric motor	6,5 kW
Type	Electric four wheel drive with cardan shaft
Pulling force	12500 N
Parking brake	Drum brakes
¹ Measured with earthbucket
² Measured with counterweight and driver ± kg
³ Measured on standard tyres with safety roof
