Wheel loader G3500 X-TRA
Developed as a reliable and compact powerhouse, the G3500 X-TRA is ready to get to work. Simultaneously, it provides a comfortable and safe working environment with simple and precise controls. This brand-new articulated loader offers contractors, rental companies, and government entities the flexibility needed to get the job done within a reliable timeframe.
G3500 X-TRA Standard Equipment
- Lifting arm
- GIANT hydraulic quick change system
- ROPS/FOPS safety roof incl. safety doors (L+R)
- Luxury air suspended seat with safety belt, armrest and extended backrest
- Double acting valve at the front (mechanical)
- Floating position on lifting cylinder(s)
- Hydraulic service brake on 4 wheels
- Working light (halogen) at the front
- Battery, 77 Ah
- Main switch
- Anti-theft protection with access code (not certified)
- Towing hook at the back
- 1 Counterweight integrated into the bumper
- Cyclone filter
- Oil cooler
The hydrostatic 4-wheel drive with automotive steering and 100% switchable differential lock on both 14-ton axles prevents the machine from losing grip and provides sufficient pulling force for smooth movement. Due to the often narrow and limited space on construction sites, there is a demand for an agile wheel loader with a narrow wheelbase that can lift and transport heavy loads. The G3500 X-TRA stands out with a high tipping load (3,250 kg) compared to its own weight (3,700 kg).

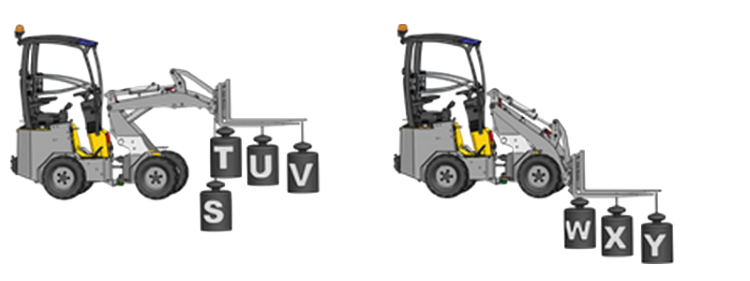

Tipping loads of the machine
The table shows the tipping loads at different positions of the machine. The tipping load is the maximum weight the machine can lift while remaining stable and not tipping. The actual tipping load depends on the configuration of the machine, such as various options, attachments and
working position.
|
G3500 X-TRA Tipping Loads / Devrilme Yükleri
|
|
Position / Konum
|
Load / Yük (kg)
|
|
S
|
3.260 kg
|
|
T
|
3.020 kg
|
|
U
|
2.325 kg
|
|
V
|
1.810 kg
|
|
W
|
4.650 kg
|
|
X
|
3.250 kg
|
|
Y
|
2.335 kg
|
|
Source:
TOBROCO-GIANT product information sheet. Values depend on machine
configuration, attachment and working position.
|
G3500 X-TRA
Specifications
|
|
Service
weight ¹
|
3700 kg
|
|
Tipping Load
²
|
3250 kg
|
|
Length
without bucket
|
3750 mm
|
|
Width on
standard tires
|
1340 mm
|
|
Travel Speed
|
0-10 / 0-30 km/h
|
|
Cylinders
|
4
|
|
Engine power
|
48,5 kW
|
|
Oil tank
capacity
|
80 l
|
|
Transmission
|
Automotive control
|
|
Final drive
|
14 tons axles with heavy planetary end drive
|
|
Driving
hydraulics
|
112 l/min (450 bar)
|
|
Parking
brake
|
Drum brakes
|
|
Lifting
capacity
|
3225 kg
|
|
Lifting
height ²
|
2670 mm
|
|
Machine
height ³
|
2330 mm
|
|
Standard
tires
|
11.5/80-15.3 AS
|
|
Engine
|
Kubota V2403-CR-TE5B DOC/DPF (STAGE V)
|
|
Engine power
|
66 hp
|
|
Fuel tank
capacity
|
49 l
|
|
Type
|
Hydrostatic 4 wheel drive
|
|
Differential
|
100% electrical differential lock on both axles
|
|
Pulling
force
|
30.000 N
|
|
Working
hydraulics
|
70 l/min (220 bar)
|
|
¹ Measured
with earthbucket
|
|
² Measured
with counterweight and driver ± kg
|
|
³ Measured
on standard tyres with safety roof
|
|
