GIANT G1500L X-TRA - Wheel Loader

The G1500 X-TRA is the so-called ‘Lightweight’ in the X-TRA Series range - characterized by their extra low front frame and thus a lower centre of gravity of the load in comparison to the machine, resulting in a significantly higher tipping load.

An additional advantage is the driver’s excellent view on his/her work which improves work safety. Also, the differential lock ensures that the machine doesn’t lose grip – even on loose sand – making this machine perfectly suitable for road workers and gardeners.

With this machine, the operator works from the most comfortable seat on the job site – featuring a spacious operator environment combined with the smooth predictable control instruments, the ergonomic, low-effort joystick and tilt and telescope steering column guarantee safe and efficient working conditions.

Standard version

Hitch: GIANT Standard (Hydraulically)
ROPS / FOPS safety roof, incl. safety doors left and right
The double-acting hydraulic valve at the front (mechanical)
Floating position on lifting cylinder(s)
Luxury seat with safety belt, armrest, and extended backrest
Main switch
Towing hook at the back
Working light on the lifting arm
Cyclone filter
Oil cooler

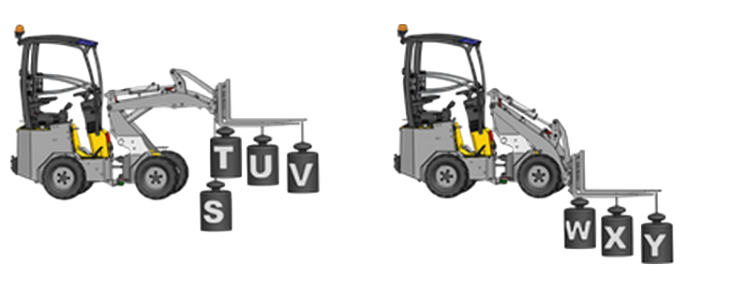

Tipping loads of the machine

The table shows the tipping loads at different positions of the machine. The tipping load is the maximum weight the machine can lift while remaining stable and not tipping. The actual tipping load depends on the configuration of the machine, such as various options, attachments and working position.

G1500L X-TRA Tipping Loads / Devrilme Yükleri
Position / Konum	Load / Yük (kg)
S	1.780 kg
T	1.620 kg
U	1.185 kg
V	890 kg
W	2.155 kg
X	1.485 kg
Y	1.055 kg
Source: TOBROCO-GIANT product information sheet. Values depend on machine configuration, attachment and working position.

G1500L X-TRA Specifications

Service weight ¹

1.525 kg

Tipping Load ²

1.485 kg

Length without bucket

2.870 mm

Width on standard tires

1.100 mm

Travel Speed

0-12 km/h

Cylinders

Engine power

19 kW

Oil tank capacity

41 l

Transmission

Automotive control

Final drive

4 heavy Poclain wheel engines

Driving hydraulics

84 ltr/min (350 bar)

Parking brake

Hydraulic multidisk brake

Lifting capacity

1.400 kg

Lifting height ²

2.070 mm

Machine height ³

2.230 mm

Standard tires

26x12.00-12 AS

Engine

Kubota D1105 (STAGE V)

Engine power

26 hp

Fuel tank capacity

25 l

Type

Hydrostatic 4 wheel drive

Differential

Electric controlled length differential lock

Pulling force

9.200 N

Working hydraulics

42 ltr/min (170 bar)

¹ Measured with earthbucket

² Measured with counterweight and driver ± kg

³ Measured on standard tyres with safety roof
