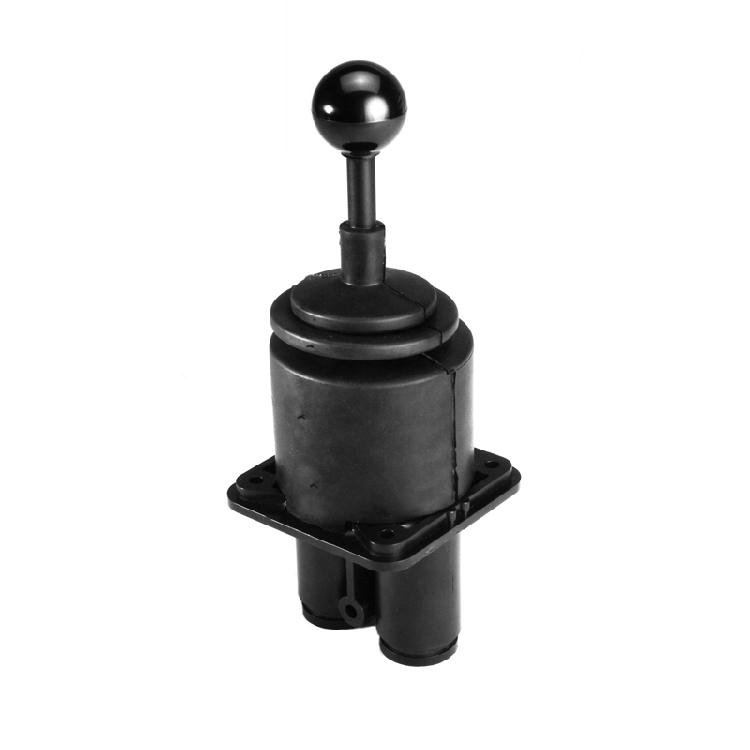

electronic hand throttles

± 0.50 in (± 12.7mm) output stroke
Symmetrical ±30° input motion
Either plus- or X-axis orientation by rotating installation
Centering springs for each output
Working loads up to 100 lbs (455N) on each output
C61 Series for push-pull cables has standard 2" output stroke (42C or 62B types)
C62 Series intended for rod linkage outputs
Neutral lock with 2 or 3 positions

Options:

ADCO® grip with electrical switches
1" stroke cable for installations having minimal cable bends and appropriately short-stroke requirements
Lock to prevent inadvertent motion of the outputs
Input motion restrictor
Bent input levers to place the lever in a convenient position for the vehicle operator

LEVER POSITION	OUTPUT MOTION		GEOMETRIC ADVANTAGE
LEVER POSITION	A	B	(WITH 10.9" LEVER)
1	PULL	PUSH	8.8:1
2	PULL	-	6.6:1
3	PULL	PULL	8.8:1
4	-	PULL	6.6:1
5	PUSH	PULL	8.8:1
6	PUSH	-	6.6:1
7	PUSH	PUSH	8.8:1
8	-	PUSH	6.6:1

ASSOCIATED PRODUCTS

QUADCO - Grip Control System

The QUADCO® grip control system provides a convenient way of adding electrical features to a single- or dual-axis mechanical lever control. Available as grip-only, or with rocker switch, top pushbutton, side pushbutton or combination of top and side switches.

QUADCO - Grip Control System

Standard Features:

Tough Nylon 66 body for maximum structural integrity
Available with weather-resistant Neoprene cap and an electronic switch for control of secondary function
Hex anti-rotation block with 1/2-13 lock nut
Cross-Linked Polyethylene insulated 18ga stranded wire (SAE J1560 type TXL)
