C3-36V - AC MOTOR CONTROLLER
C3-36V - AC MOTOR CONTROLLER

Product Brand: PG Drives Technology-C3 Controllers

MOTOR CONTROLLERS - LOW VOLTAGE:
A diverse range of controllers offering, AC motor control, permanent magnet DC motor control and separately-excited motor control suitable for a wide range of electric vehicles, such as pallet trucks, stacker trucks, tow tractors, fork lift trucks or any other type of battery powered vehicles.

All products offer an excellent combination of compact and robust design, power, performance, functionality and cost.

C3 SERIES:
Although primarily intended as an advanced, cost-effective range of traction and pump controllers for Class 3 pallet truck type applications, the C3 range is equally suitable for other small, ride-on vehicles.

Flexible, yet simple programming means the controllers are compatible with all types of AC traction and DC pump motors, while a dedicated thermistor input allows motor temperature and the power to the motor to be reduced if it is becoming too warm.

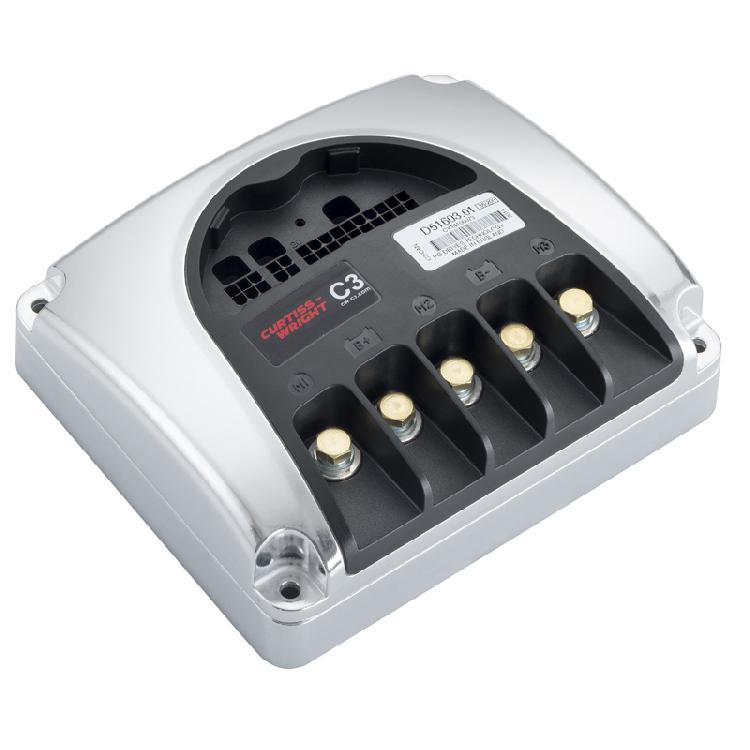

The C3-36V is a compact and cost-effective AC motor controller for small Industrial vehicles.

Compact & Cost-Effective
  • 36V AC traction controller, particularly suitable for ride-on floorcare machines
  • 200Arms motor output
  • Compatible with all AC induction motors
  • Versatile throttle & brake pedal inputs
  • Three coil outputs
  • Intelligent Hill-Hold function
  • Programmable start-up sequence options
  • Low battery management
  • CANopen comms
  • On-board Status LEDs
  • Integrated service timers
  • Sealed to IPx5
  • Designed to the requirements of EN60335-2-72 and UL583
Powerful and Versatile
Although primarily intended as an advanced, cost-effective, AC traction controller for floorcare machines, the 36V motor controller variant of PGDT’s C3 range is equally suitable for other small, ride-on vehicles.
Flexible, yet simple programming means the controller is compatible with all types of AC induction motor, while a dedicated thermistor input allows motor temperature and the power to the motor to be reduced if it is becoming too warm.

Robust & Compliant
The innovative construction methods employed by the 36V motor controller ensure the reliable and repeatable assembly of the electronic enclosure, which results in consistent protection of the electronic circuits from the environment and efficient transfer of heat to the baseplate.
The design is compliant with all relevant international floorcare vehicle standards, e.g. EN60335-2-72, and uses UL approved materials throughout, taking into account the critical dimensions defined in UL583.
