murphylink series panels

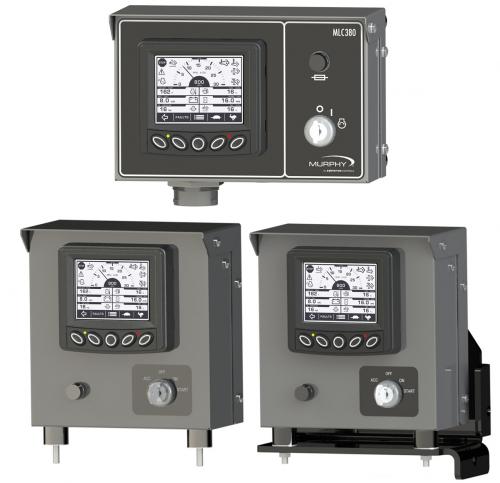

The MurphyLink Series MLC380 Panel, engineered and built by Enovation Controls’ Industrial Panel Division, is a superior panel offering that includes the powerful, yet simple-to-configure PV380 display.

The MLC380 panel has the ability for the software to be fully configured from the front user interface. If the default parameters set by Enovation Controls are not the desired set points, the packager or operator has the ability to change these settings.

The configuration tool also allows for the splash screen to incorporate a company logo when powered on.

The flexibility of the MLC380 allows for the same panel to be used across many applications. This provides the operator familiarity with the display and panel in any application.

The panel utilizes industry standard Deutsch connectors and is compatible for use on the simplest to the most advanced, fully electronic Tier 4 engines, when used with the correct Murphy Industrial Harness or John Deere OEM engine harnessing.

This panel is available in a rugged powder-coated cold rolled steel enclosure that can be mounted on or near the engine.

PV380 Display Technical specifications:

Operating Voltage: 6-36 VDC; reverse polarity protected
Operating Temperature: -40° to +85°C (-40° to 185°F)
Storage Temperature: -40° to +85°C (-40° to 185°F)

Viewing Area: 3.8” (97mm) QVGA (320 x 240 pixels); monochrome transflective LCD with white LED backlight and heater

Viewing Angle: ±55° horizontally; +45° / -60° vertically

Enclosure: Powder-coated cold rolled steel

Alarms: Red and amber warning LEDs; Setpoint triggered output for external piezo buzzer or shutdown relay

Mating Connectors:

21 Position, Deutsch HDP26-24-21SE,
31 Position, Deutsch HDP26-24-31SE

Sealing: IP66 and 67 (Display only)

Vibration and Shock: 7.86g random vibe (5-2000Hz) and ±50g shock in 3 axis (Display only)

Communications: CAN (SAE J1939) and RS-485 Modbus

Languages: English

Outputs (2):

(1) 500 mA; switched low-side
(1) 5V supply (70mA); protected

Inputs (8):

(4) Resistive Analog
(2) 4-20mA
(1) Ground
(1) Frequency, (2Hz – 10KHz, 3.6VAC-120VAC)

EMC/EMI:

2004/108/EC and 2006/95/EC directives
EN61000-6-4:2001 (emission)
EN61000-6-2:2001 (immunity)
EN50121-3-2 and EN12895

SAE J1113/2, 4, 11, 12, 21, 24, 26 and 41
